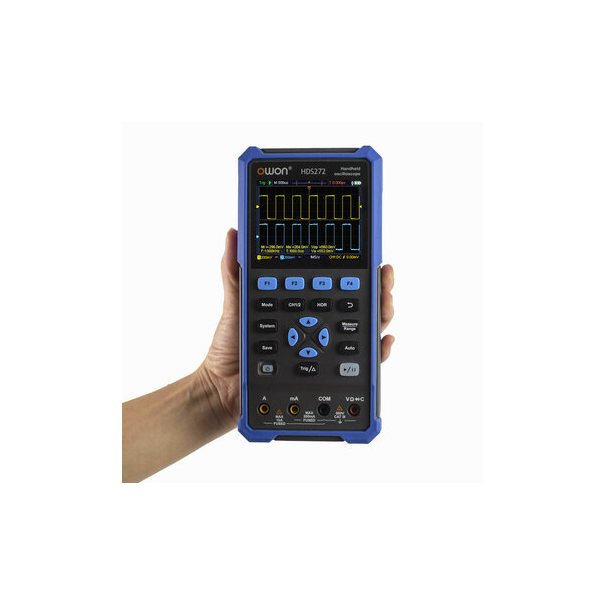

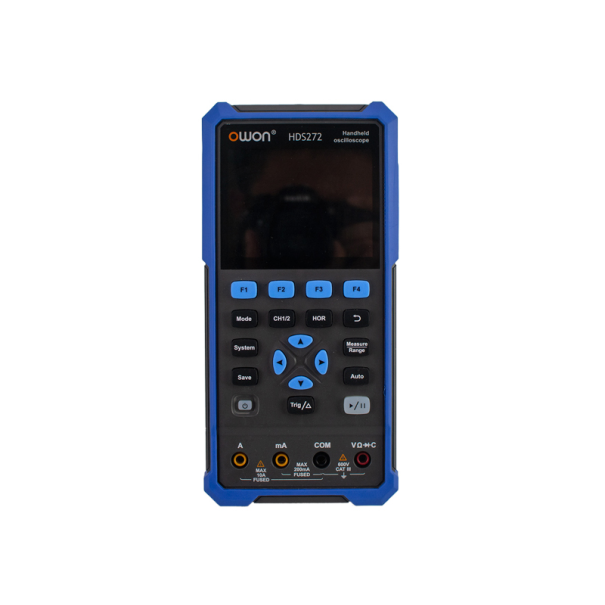

OSCILLOSCOPE 70MHZ - GENERATEUR - MULTIMETRE - PORTABLE 3 EN 1
235,00 €TTC
194,21 €HT
HDS272S
2 en stock
Model | HDS272S | |||
Bandwidth | 70MHz | |||
Channels | 2-CH Oscilloscope+1 CH Generator | |||
Sample Rate | 250MSa/s | |||
Acquisition Model | Normal, Peak detect | |||
Record Length | 8K | |||
Display | 3.5-inch LCD | |||
Waveform Refresh Rate | 10,000 wfrms/s | |||
Input Coupling | DC, AC, and Ground | |||
Input Impedance | 1 MO±2%, in parallel with 16pF±10pF | |||
Probe Attenuation Factors | 1X,10X,100X,1000X | |||
Max. input Voltage | 400V (DC+AC, PK-PK, 1MO input impedance) (10:1 probe attenuation) | |||
Bandwidth Limit (typical) | 20MHz | |||
Horizontal Scale | 5ns/div - 500s/div, step by 1 - 2 - 5 | |||
Vertical Sensitivity | 10mV/div - 10V/div | |||
Vertical Resolution | 8 bits | |||
Trigger Type | Edge | |||
Trigger Modes | Auto, Normal, single | |||
Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min | |||
Cursor Measurement | ?V, ?T, ?T&?V between cursors,auto cursor | |||
Communication Interface | USB Type-C |
