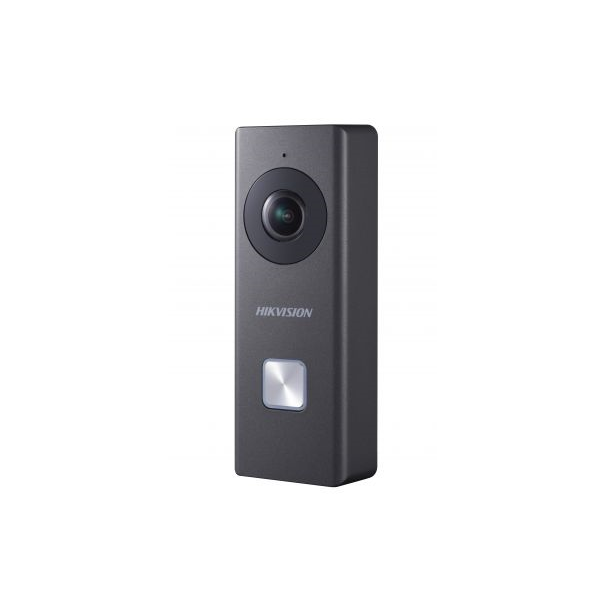

SONNETTE HIKVISION 2MP HD EN COULEUR POUR INTERCOM

HIKVISION SONNETTE 2MP HD EN COULEUR POUR INTERCOM

Wi-Fi Video Doorbell in 4 colors

Features

Basic Functions

• Video intercom function, supporting the audiovisual communication with the mobile App directly
• Self-adaptive IR supplement with max. 5-meter IR distance
• High-performance embedded SOC processor
• IP 54 standard

Video/Audio Functions

• HD video surveillance with ultra-wide angle (180º) and high performance CMOS, up to 1080P
• Noise suppression and echo cancellation
• H.264 video compression standard
• Low illumination
• Supports voice prompt
• Volume configuration via App

Other Functions

• Online upgrade via the mobile App
• Supports motion detection and video recording
• Supports the storage and playback via TF card
• Equipped with a backlit call button
• Equipped with a replaceable faceplate (3 extra faceplates available in different colors)
• Supports connecting to the mechanical chime
• Equipped with a reset button

Specifications

System Parameters

• Processor: High-Performance Embedded SOC Processor
• Operation System: Embedded Linux Operation System

Camera Parameters

• Image Sensor: CMOS 2MP HD Colorful Camera
• Light sensitivity: Low Illumination
• Lens: f1.96 mm, F 2.2
• Field of view: 180º (Horizontal), 96º (Vertical)

Video Parameters

• Video Compression Standard: H.264
• Video streaming: Dual Stream
• Main Stream: 1080P, Sub-Stream: VGA
• Anti-flicker frequency: 50 Hz, 60 Hz
• Wide dynamic range: WDR

Audio Parameters

• Audio streaming: Two-Way, Full Duplex
• Audio Input: Built-in Omnidirectional Microphone
• Audio Output: Built-in Loudspeaker
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps
• Audio Quality: Noise Suppression and Echo Cancellation

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Interface number: 1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz

Light Supplement

• Light Supplement Mode: IR Supplement, IR Distance: 5 Meters
• Wavelength: 940 nm

Device Interfaces

• TF Card (micro SD card): Max. 128 G
• Button: 1 Call Button, 1 Reset Button

Event actions

• Event: Motion Detection

General

• Power Supply: 16 VAC to 24 VAC
• Power frequency: 50 Hz to 60 Hz
• Power Consumption: Max. 0.6 A
• Working Temperature: -30° C to +50° C (-22° F to 122° F)
• Working Humidity: 10% to 90%
• IP Protection Level: IP 54
• Dimensions(L × W × H): 122.4 mm x 45.9 mm x 28.1 mm (4.82" x 1.81" x 1.11")
